Fatigue Life Prediction for Welded Structures: S-N Curve vs. Fracture Mechanics – When to Use Which

BadgerMecX Content Team | BadgerMecX Content Team
Fatigue Life Prediction for Welded Structures: S-N Curve vs. Fracture Mechanics – When to Use Which

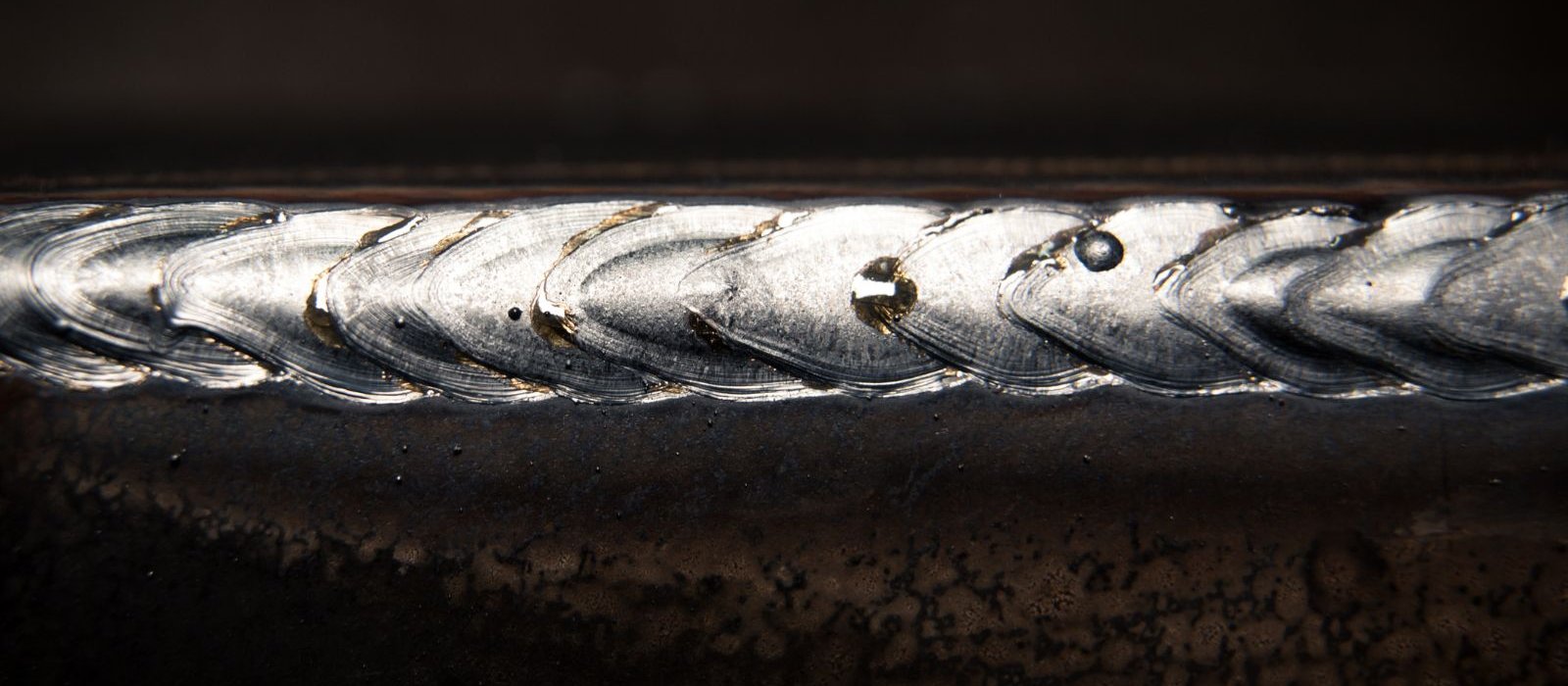

Welded joints are inherently imperfect. They contain micro-voids, residual stresses, and geometric discontinuities that act as natural stress concentration points.

Welded joints are inherently imperfect. They contain micro-voids, residual stresses, and geometric discontinuities that act as natural stress concentration points. Under cyclic loading, these imperfections can lead to catastrophic fatigue failure long before the material reaches its nominal yield strength. However, determining the most reliable mathematical methodology to predict this lifespan remains a core challenge in structural engineering.

The S-N Curve Approach: Fundamentals

The S-N curve (Stress vs. Number of Cycles to Failure) approach treats the structure as a continuum, predicting total life without modeling individual crack paths.

  • Standards utilized: IIW (International Institute of Welding), DNVGL-RP-C203, and BS 7608.
  • Best use cases: High-cycle fatigue scenarios where standard weld geometries are applied, and the engineer needs to determine whether a weld will initiate a crack during its design life.

The Fracture Mechanics Approach: Fundamentals

Instead of guessing when a crack forms, fracture mechanics assumes a crack already exists or focuses purely on its growth.

  • Core Physics: Uses the Paris Law ($\frac{da}{dN} = C(\Delta K)^m$) to calculate the crack propagation rate based on stress intensity factors.
  • Best use cases: Damage tolerance engineering, fitness-for-service (FFS) assessments, and evaluating structures where a crack has been physically detected during inspection.

Comparison Table: S-N vs. Fracture Mechanics

When should I use S-N curve vs. fracture mechanics?

Direct Answer: Use the S-N curve approach during the initial design phase for uncracked, standard weld details subject to high-cycle loading. Shift to fracture mechanics when dealing with high-consequence structures requiring damage tolerance, existing cracks found during inspection, or non-standard joint details where structural life is dominated by crack propagation.

Feature / CriteriaS-N Curve ApproachFracture Mechanics ApproachPrimary Inputs Required

Nominal/Hot-Spot Stress, Joint Class

Initial Crack Size, Stress Intensity ($K$)

Computational Cost

Low to Moderate

High (Requires highly refined mesh at crack tip)

Output Type

Number of cycles to total failure

Crack growth rate and critical crack size

Applicable Standards

DNV-RP-C203, BS 7608, IIW

BS 7910, API 579-1/ASME FFS-1

The Hybrid Approach: Combining Both

In complex assets like offshore oil platforms or heavy mining machinery, engineers utilize both. The S-N curve approach validates the global layout, while fracture mechanics defines the critical inspection intervals for areas where welds cannot be perfectly inspected.

Practical Example: Offshore Structural Joint Assessment

Consider a tubular jacket joint under wave action. A structural fatigue consultant first maps the hot-spot stresses using FEA to run an S-N assessment. If a weld fails the design life criteria, fracture mechanics is introduced to check if an internal inspection protocol can safely manage the risk over 25 years.

How to Document Fatigue Results for Certification

Reviewers look for stress extraction transparency. You must clearly document if you used the Nominal Stress, Effective Notch Stress, or Structural Hot-Spot Stress method, showing the exact linear extrapolation paths from the weld toe.

Summary

Choosing the wrong fatigue model can either over-engineer your structure or lead to early mechanical failure. Consult with a structural fatigue consultant at BadgerMecX to select the right approach for your welded assets.
